컨테이너제원

GP (GENERAL PURPOSE CONTAINER)

Type of Container External Dimensions(mm) Internal Dimensions(mm) Weight(kg) Capacity(m3)
Length Width Height Length Width Height Length Width Height
20GP 6,058 2,438 2,591 5,898 2,350 2,390 30,480 2,300 28,180 33
40GP 12,192 2,438 2,591 12,010 2,350 2,390 30,480 3,900 26,580 67
40HC 12,192 2,438 2,896 12,010 2,345 2,685 30,480 4,160 26,320 75.9
45HC 13,716 2,438 2,896 13,556 2,352 2,698 32,500 4,700 27,800 86

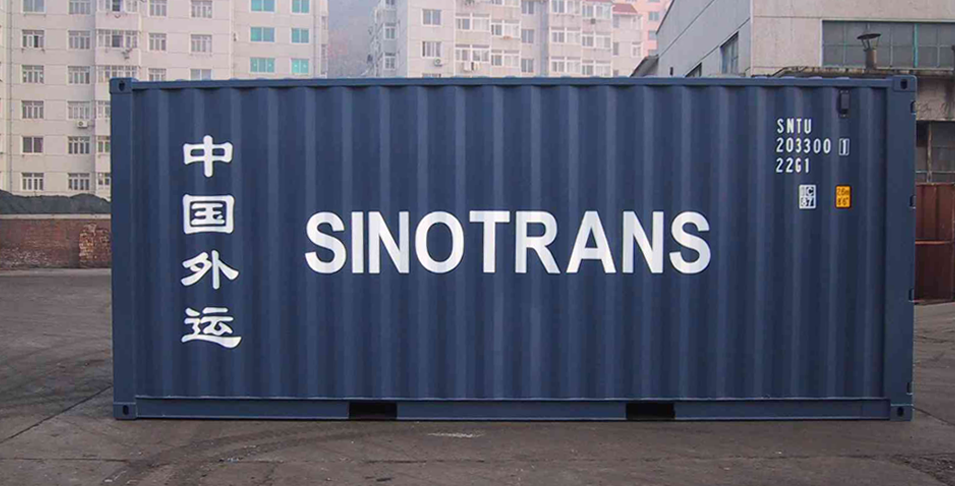

20GP
External
Dimensions(mm)		 Length 6,058
Width 2,438
Height 2,591
Internal
Dimensions(mm)		 Length 5,898
Width 2,350
Height 2,390
Weight(kg) Length 30,480
Width 2,300
Height 28,180
Capacity(m3) 33
40GP
External
Dimensions(mm)		 Length 12,192
Width 2,438
Height 2,591
Internal
Dimensions(mm)		 Length 12,010
Width 2,350
Height 2,390
Weight(kg) Length 30,480
Width 3,900
Height 26,580
Capacity(m3) 67
40HC
External
Dimensions(mm)		 Length 12,192
Width 2,438
Height 2,896
Internal
Dimensions(mm)		 Length 12,010
Width 2,345
Height 2,685
Weight(kg) Length 30,480
Width 4,160
Height 26,320
Capacity(m3) 75.9
45HC
External
Dimensions(mm)		 Length 13,716
Width 2,438
Height 2,896
Internal
Dimensions(mm)		 Length 13,556
Width 2,352
Height 2,698
Weight(kg) Length 32,500
Width 4,700
Height 27,800
Capacity(m3) 86
